How to Override a Module Layout in Joomla 6 (Update-Safe Method)

This guide covers module layout overrides on Joomla 6.x, which requires PHP 8.3 or newer. You will learn the difference between a template override and an alternative layout, create both, and keep them working after Joomla updates.

📋 What You'll Need

Requirement	Details
Joomla version	6.x (PHP 8.3+, MySQL 8.0.13+ or MariaDB 10.4+)
Access level	Super User (needed for the template file editor)
Template	Cassiopeia or a child template of it
Skills	Basic HTML and PHP
Before you start	A fresh backup of /templates/ and the database

What Is the Difference Between a Template Override and an Alternative Layout?

Both live in /templates/your-template/html/mod_name/. The difference is how Joomla chooses them.

	Template override	Alternative layout
File name	Same as core (default.php)	Different name, no underscore (expires.php)
When it is used	Automatically, for every instance of the module	Only where you select it in the module's Advanced tab
Best for	Sitewide markup changes	Different looks for different module instances

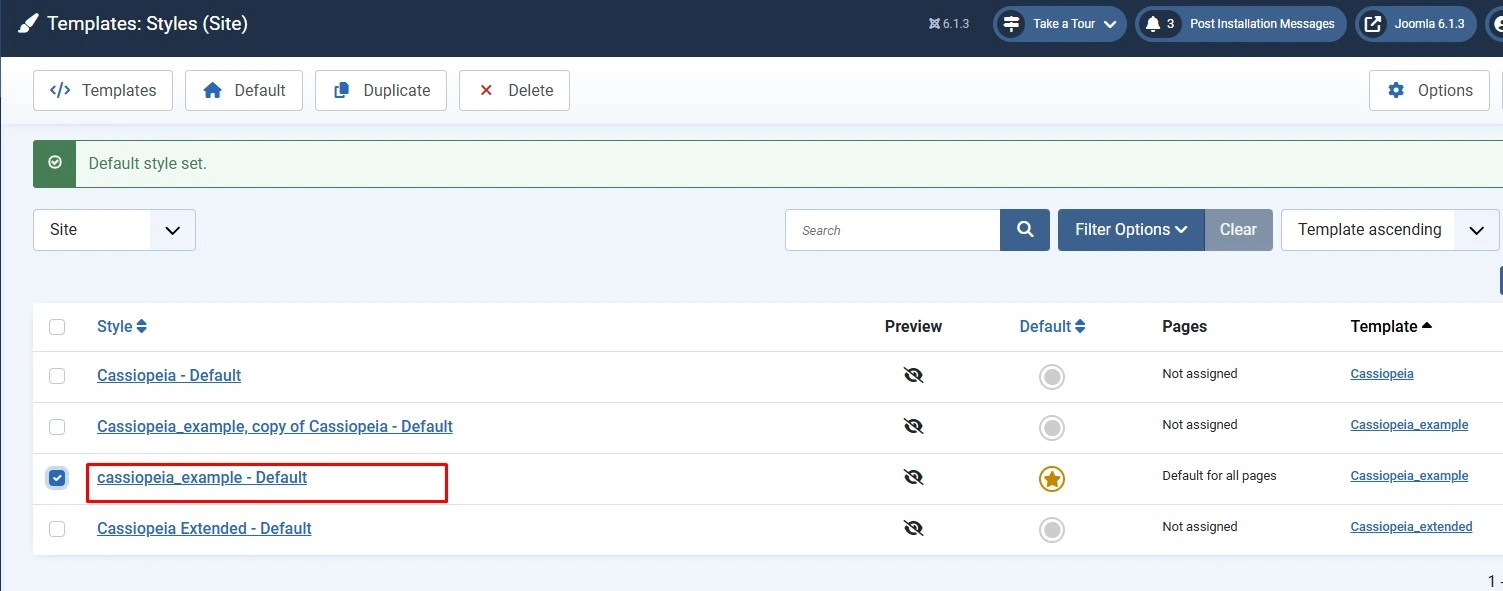

Step 1: Create a Child Template First

Do not edit files shipped with Cassiopeia. Joomla's own documentation warns that a Joomla update may overwrite them and your edits will be lost. A child template uses its parent's files except for those you place in the child, so your overrides stay separate. Follow the Joomla User Guide's Child Templates page, then set the child as your active site template style.

Step 2: Open the Create Overrides Tab

Go to System → Site Templates and open Details and Files for your child template. Select the Create Overrides tab. It lists the modules, components, plugins and layouts that support overrides.

Step 3: Click the Module to Copy Its Layout Files

Click mod_login (or any module). Joomla copies the module's tmpl files into the template's html folder and returns you to the Editor tab. For mod_login you get default.php and default_logout.php under html/mod_login/. From now on, Joomla uses these copies instead of the originals.

Step 4: Edit the Copied Layout File

Open default_logout.php. Use Show Differences to compare your copy with the original file as you work. Below the existing use lines, add:

use Joomla\CMS\Factory;

$lifetime = (int) Factory::getContainer()->get('config')->get('lifetime', 0);
$endTime  = date('H:i', time() + $lifetime * 60);

Then add this markup where the message should appear, after the form's closing endif statement:

<p class="text-center">
    Your session expires at <?php echo $endTime; ?>
</p>

Save, then reload a front-end page where a logged-in user sees the module. The session time reflects the server's timezone setting, so check it matches your site.

Step 5: Turn It Into an Alternative Layout (Optional)

If you want the change on one module instance only, rename the files instead of keeping the core names:

• default.php → expires.php
• default_logout.php → expires_logout.php

The first file's name must contain no underscore. Extra files that belong to the layout share its first part and do use underscores. Then open Content → Site Modules, edit the module, and pick your layout under Advanced → Layout. It appears under the heading for your template.

Step 6: Test and Clean Up

Reload the page, clear Joomla's cache if the old markup persists, and check both logged-in and logged-out states. If you were only experimenting, delete the copied files with Delete File or Manage Folders in the template editor, so unused overrides don't linger.

How Do You Keep Overrides Working After a Joomla Update?

An override freezes the module's markup at the time you copied it. If a later Joomla or extension update changes the original file, your copy will not pick up the change (including security or accessibility fixes). After each update, open the override in the template editor and use Show Original File and Show Differences to review what changed, then merge the differences by hand.

❓ FAQ

Where do Joomla 6 module overrides go?

In /templates/your-template/html/mod_name/. For example, an override for the login module goes in /templates/cassiopeia/html/mod_login/. With a child template, use the child's folder.

Can I edit the module's core layout file directly?

You can, but you should not. Core files can be overwritten by the next update, erasing your work. An override or alternative layout in the template's html folder is the supported method.

Why doesn't my alternative layout appear in the Layout dropdown?

Most often the file name contains an underscore, or the file sits in the wrong folder. The main file needs a name without underscores and must be placed in html/mod_name/ of the template.

Do plugins support alternative layouts?

No. Joomla's documentation states plugins have no mechanism to select alternative layouts. Plugins support template overrides, using folders named like plg_group_name.

Do Joomla 5 overrides still work in Joomla 6?

Usually yes, because the override structure is the same, but Joomla 6 removed some legacy classes. Test each override on a staging copy and compare it against the current original file before going live.

🧯 Common Mistakes to Avoid

• Editing Cassiopeia's own files. Updates can overwrite them. Work in a child template.
• Using underscores in an alternative layout name. The layout will not show in the dropdown.
• Forgetting the override is always active. A file named like the core one applies to every instance of that module.
• Never reviewing overrides after updates. Your copy can drift from the fixed original.
• Removing the defined('_JEXEC') or die; line. Keep the security guard at the top of PHP layout files.

✅ Last verified against Joomla 6.x documentation — September 2026
